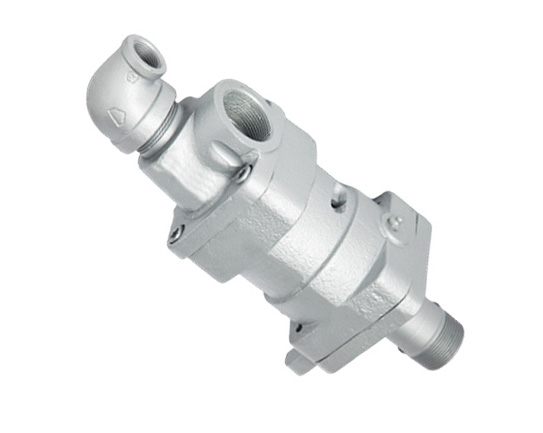

| Media | Steam, Hot oil, Hot water etc. |
| Max. Pressure | 20 kgf/cm² |
| Max. Temperature | 230℃ |
| Max. Rotation Speed | 200 rpm |
사용유체, 온도, 압력, RPM에 따라 재질 변경됩니다.
문의를 바랍니다.
| SINGLE TYPE | THREAD (R, L) | ||||||||||||||||
| MODEL | A (PT) | B (PT) | C (PT) | D (PT) | PF-E | KC3-ø | L1 | L2 | L3 | L4 | L5 | L6 | L7 | F | H | N | |
| 20A | MK320H-A20-AE1 | 3/4" (20A) | 3/4" (20A) | 3/4" (20A) | 15A | 8A | ø13 | 254 | 209 | 61 | 25 | 20 | 42 | 40 | 50 | 60 | ø18 |
| 25A | MK320H-A25-AF1 | 1" (25A) | 1" (25A) | 1" (25A) | 15A | 10A | ø16.5 | 277 | 56 | 222.5 | 56 | 20 | 20 | 46 | 68 | 71 | ø22 |
| 32A | MK320H-A25-AG1 | 1 1/4" (32A) | 1" (25A) | 1 1/4" (32A) | 15A | 15A | ø19.5 | 320.5 | 261 | 72 | 21 | 20 | 51 | 65 | 86 | 92 | ø30 |
| 40A | MK320H-A32-AH1 | 1 1/2" (40A) | 1 1/4" (32A) | 1 1/2" (40A) | 20A | 20A | ø26.5 | 320.5 | 261 | 72 | 21 | 20 | 51 | 65 | 90 | 97 | ø35 |
| 50A | MK320H-A40-AJ1 | 2" (50A) | 1 1/2" (40A) | 2" (50A) | 25A | 25A | ø33.5 | 349 | 275 | 66.5 | 25 | 20 | 56 | 70 | 95 | 103 | ø48 |
| DOUBLE TYPE | FLANGE | |||||||||||||||||
| MODEL | B (PT) | C (PT) | D (PT) | PF-E | KC3-ø | L1 | L2 | L3 | L4 | N | O | P | Q | R | S | T | U | |
| 20A | MK320H-A20-5EC | 3/4" (20A) | 3/4" (20A) | 1/2" (15A) | 8A | ø13 | 254 | 238 | 193 | 56 | ø18 | ø30 | 54 | ø74 | 13 | 8 | 4 | ø11 |
| 25A | MK320H-A25-5FC | 1" (25A) | 1" (25A) | 1/2" (15A) | 10A | ø16.5 | 305 | 278 | 224 | 57 | ø22 | ø35 | 60 | ø80 | 14 | 9 | 4 | ø11 |
| 32A | MK320H-A25-5GC | 1" (25A) | 1 1/4" (32A) | 1/2" (15A) | 15A | ø19.5 | 325 | 307 | 247 | 58 | ø30 | ø50 | 75 | ø96 | 16 | 9 | 4 | ø14 |
| 40A | MK320H-A32-5HC | 1 1/4" (32A) | 1 1/2" (40A) | 3/4" (20A) | 20A | ø26.5 | 327 | 300 | 241 | 52 | ø35 | ø50 | 75 | ø96 | 16 | 9 | 4 | ø14 |
| 50A | MK320H-A40-5JC | 1 1/2" (40A) | 2" (50A) | 1" (25A) | 25A | ø33.5 | 371 | 349 | 275 | 66.5 | ø48 | ø65 | 95 | ø120 | 19 | 10 | 4 | ø14 |
