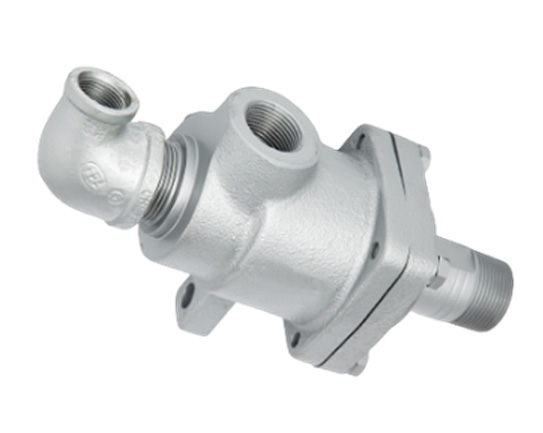

| Media | Steam, Hot oil etc. |
| Max. Pressure | 17 kgf/cm² |
| Max. Temperature | Steam : 180℃ Hot oil : 300℃ |
| Max. Rotation Speed | 350 rpm |
사용유체, 온도, 압력, RPM에 따라 재질 변경됩니다.
문의를 바랍니다.
| TYPE | THREAD (R, L) | |||||||||||
| MODEL | A (PT) | B (PT) | L | L2 | L3 | L4 | N | H | F | G | ||
| 15A | MK301S-A15-AD1 | 1/2" (15A) | 1/2" (15A) | 149 | 123 | 47 | 17 | ø16 | 50.5 | 47 | 27 | |
| 20A | MK301S-A20-AE1 | 3/4" (20A) | 3/4" (20A) | 149 | 123 | 47 | 17 | ø18 | 50.5 | 47 | 27 | |
| 25A | MK301S-A25-AF1 | 1" (25A) | 1" (25A) | 180 | 150 | 45 | 22 | ø22 | 57 | 55 | 28 | |
| 32A | MK301S-A32-AG1 | 1 1/4" (32A) | 1 1/4" (32A) | 195 | 165 | 53 | 25 | ø30 | 68 | 57 | 30 | |
| 40A | MK301S-A40-AH1 | 1 1/2" (40A) | 1 1/2" (40A) | 195 | 160 | 57 | 25 | ø35 | 85 | 70 | 40 | |
| 50A | MK301S-A50-AJ1 | 2" (50A) | 2" (50A) | 240 | 195 | 60 | 25 | ø46 | 88 | 72 | 47 | |
| TYPE | FLANGE | |||||||||||||||
| MODEL | B (PT) | L | L2 | L3 | H | F | N | O | O1 | P | Q | R | S | T | U | |
| 15A | MK301S-A15-5DC | 1/2" (15A) | 149 | 123 | 47 | 57 | 47.5 | ø16 | ø26 | ø12.5 | 54 | ø74 | 13 | 8 | 4 | ø11 |
| 20A | MK301S-A20-5EC | 3/4" (20A) | 149 | 123 | 47 | 57 | 47.5 | ø18 | ø30 | ø12.5 | 54 | ø74 | 13 | 8 | 4 | ø11 |
| 25A | MK301S-A25-5FC | 1" (25A) | 180 | 150 | 45 | 57 | 55 | ø22 | ø35 | ø12.5 | 60 | ø80 | 14 | 9 | 4 | ø11 |
| 32A | MK301S-A32-5GC | 1 1/4" (32A) | 195 | 165 | 53 | 68 | 57 | ø30 | ø45 | ø14 | 75 | ø96 | 16 | 9 | 4 | ø14 |
| 40A | MK301S-A40-5HC | 1 1/2" (40A) | 195 | 159 | 56.5 | 85 | 70 | ø35 | ø50 | ø15 | 75 | ø96 | 16 | 9 | 4 | ø14 |
| 50A | MK301S-A50-5JC | 2" (50A) | 240 | 195 | 60 | 88.5 | 72.5 | ø50 | ø65 | ø18 | 95 | ø120 | 18 | 12 | 4 | ø14 |
